How does a URL shortener work?
In this article, we’ll uncover what goes on behind the scenes of URL shorteners and find out about their high-level system design.
What Really Happens When You Click a Short Link
When you click a short URL, do you ever notice a small pause or delay? You get redirected almost instantly, but in that brief pause, the URL shortener is checking where the URL you visited maps to, and then anonymously logging that click to provide analytics for the person who created the link, and finally redirecting you to the destination.
The Journey From Short Link to Final Page

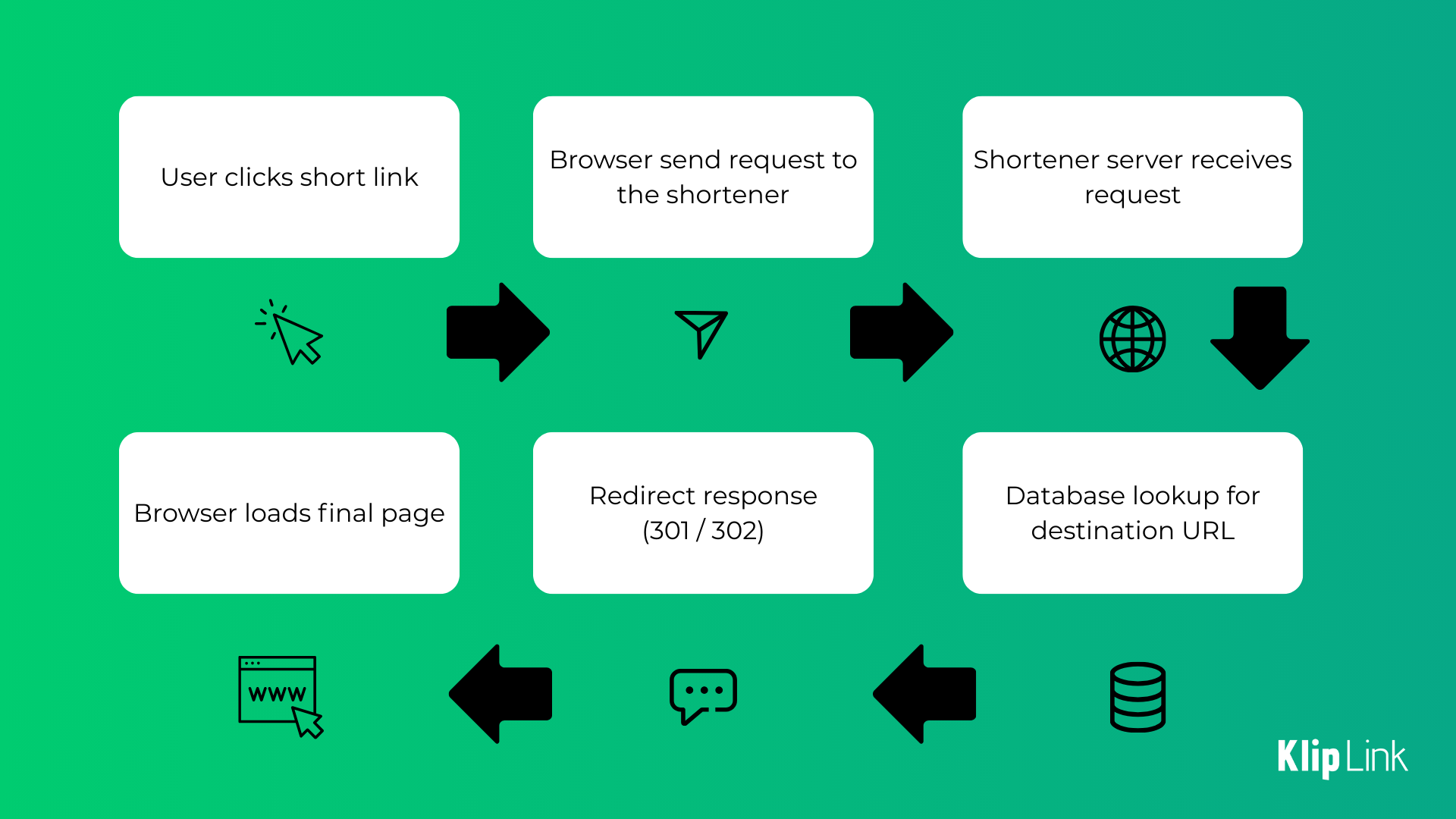

Here’s a simplified view of what happens behind the scenes when a short link is clicked:
When you click a short link, the first thing your browser does is make a request to the shortening service to find out where it needs to redirect to, as it doesn’t know where to take you yet.
The request hits the URL shortener’s server, which takes the last part of the URL (the part after the slash - e.g klipl.ink/your-link or bit.ly/1234) and uses this as an identifier. On its own, it doesn’t mean anything, so the shortening service looks up this identifier in its database and then finds the destination URL.
Once the destination URL is found, it is sent to the browser (the client) as an instruction of where to send the user. The browser then executes this instruction, and the user is sent to the correct destination URL. All of this happens in as little as under 100 milliseconds, feeling instant.
Finally, if the person or business who created the short URL enabled analytics, the shortening service will store your click in its database - but don’t worry, most services will store this anonymously and will not store your IP address or exact location.
Why Redirects Are the Core of Every URL Shortener
URL shorteners don’t actually “send” you to another website in the way you imagine. When you click a short link, the shortening service doesn’t load the destination page for you; it just responds with an instruction that tells your browser where to go next.
That instruction is known as a redirect, and as the browser is doing all of the work to load the page, redirects keep things fast and lightweight. However, these do add a very subtle delay to give the shortener time to register clicks and apply conditional rules such as expiring links.
The type of redirect used directly affects how quickly the page loads, how clicks are tracked, and how search engines interpret the link.
The Difference Between 301 and 302 Redirects
Put simply, a 301 redirect means that a link has permanently moved. When browsers and search engines come across one, they’ll assume that the destination isn’t going to change. After some time, search engines might start to treat this short URL as a new home for the destination link.
On the other hand, a 302 redirect is temporary, and lets the browser know that the destination of the short link may change soon. Search engines tend to handle these links with more caution.
Why Most Short Links Use 302 Redirects
The majority of URL shorteners (such as KlipLink or Dub) use the temporary 302 redirects, but some, such as Bitly, use permanent 301 redirects. Overall temporary 302 redirects are used because they allow more control:
- Destinations can be edited
- Easier to collect analytics
- Easier to handle edge cases (e.g Expired links or abuse checks)
Permanent 301 redirects still make sense in certain situations, like when a short URL is designed to point to the same destination URL forever. This can improve trust and SEO when search engines come across a link.
Where Short Links Are Stored (and Why Databases Matter)
Every short link needs to be saved somewhere so its destination can be fetched later. This normally means a short URL’s back-half (the part after the slash), and its destination is stored in a database somewhere.
When you click a link, the service looks up the back-half in the database and finds the destination. The database’s speed and reliability are very important for this. A slow or poorly configured / structured database will lead to slower redirects.
How Short URLs Are Generated Without Collisions
Most short URLs are either generated with a string of random numbers or letters or they are chosen by the user. Before saving a short URL to the database, the system will check that the back-half isn’t already being used, making every link reliable and ensuring they point to the right destination without clashes.
How Caching Makes Short Links Feel Instant
Caching stores popular links in memory, so that the system can skip looking the link up in the database. This makes redirects feel even more instant, even under heavy traffic. Without caching, redirects would be slower and put more strain on the server.
Tracking Clicks Without Slowing Everything Down
Clicks are usually logged separately from the redirect, so that users don’t have to wait for the click to be saved to the database before being redirected. The system may record details like the time, country, or browser to provide analytics for the link owner; these are typically anonymous and don’t store your IP address.
Common Myths About URL Shorteners (and What’s Actually True)
There are many misconceptions about URL shorteners that come from outdated ideas, poorly built tools, and bad implementations, rather than the technology itself.
- Myth: Short links are slow
Reality: Modern shorteners like KlipLink or Bitly only add a tiny delay users can’t even notice - Myth: URL shorteners hurt SEO
Reality: Search engines handle short URLs well, when they are implemented correctly - Myth: All URL Shorteners are the same
Reality: Different services are built for different purposes. For example, KlipLink works well for users needing a powerful free tier, Dub has a very modern interface, and Bitly is great for enterprise use - Myth: Short URLs are unsafe
Reality: Most apps like KlipLink or Bitly have built in safety systems that automatically detect the majority of malicious content. Additionally, links are typically served over SSL (HTTPS), keeping your redirects secure.
Final Thoughts: Simple Idea, Serious Infrastructure
URL shorteners / link shorteners look simple on the surface, but behind the scenes, large, detailed systems are working around the clock to work reliably at scale, and to keep short links safe and secure. Speed, redirects, storage, caching, and tracking all have to work together to provide a seamless experience for end users, and when they do, the technology fades into the background - exactly how it should be.
